Retrofit kits for every type of thread rolling machine.

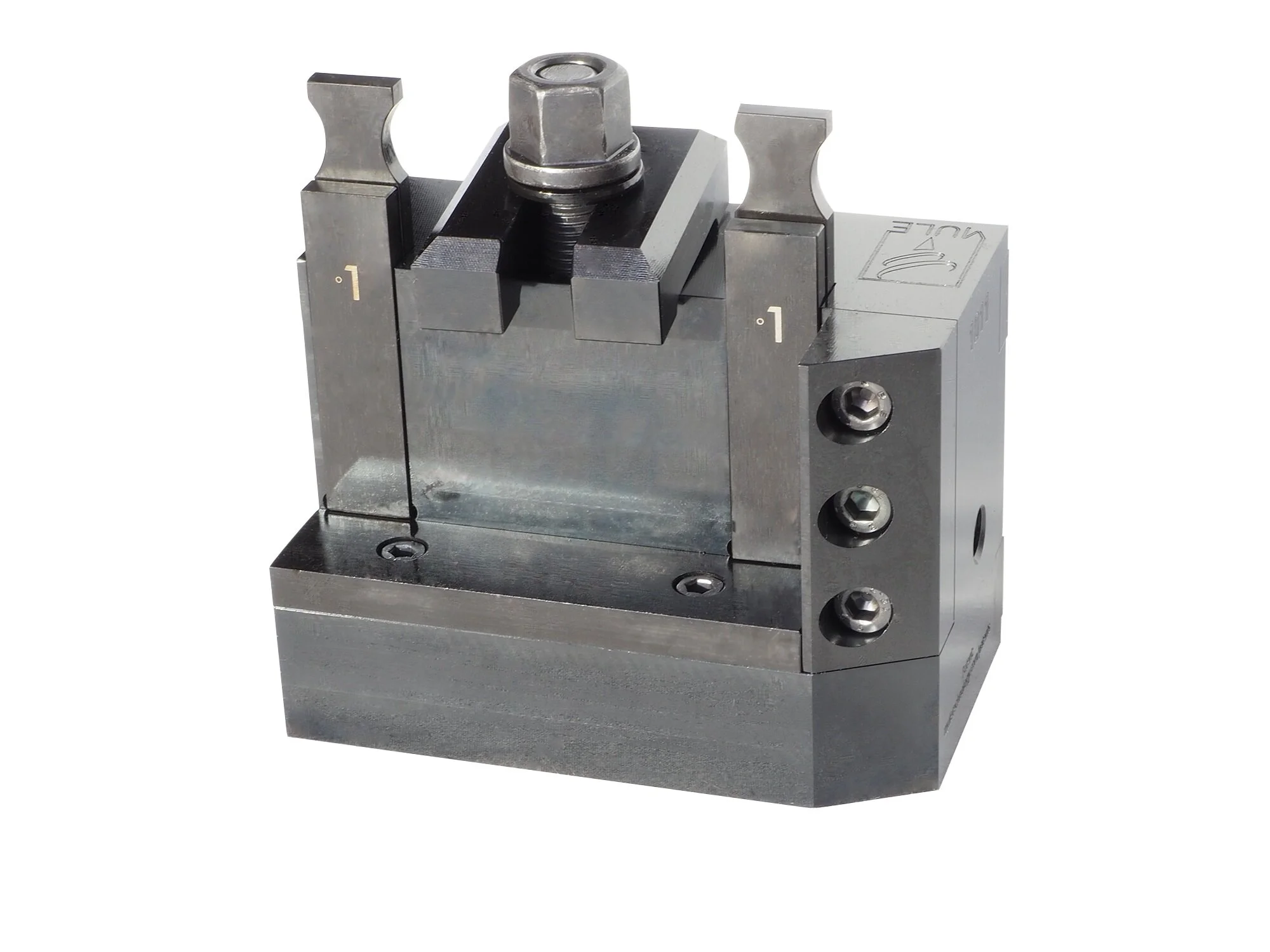

Mule Die Pocket & Key Retrofit Kits
Mule Die Pocket & Key Retrofit Kits are custom designed to replace your current stationary die pocket. Giving experienced operators flexible, repeatable, and precise control, without out all the headaches of shimming. All retrofit kits are available in imperial or metric.

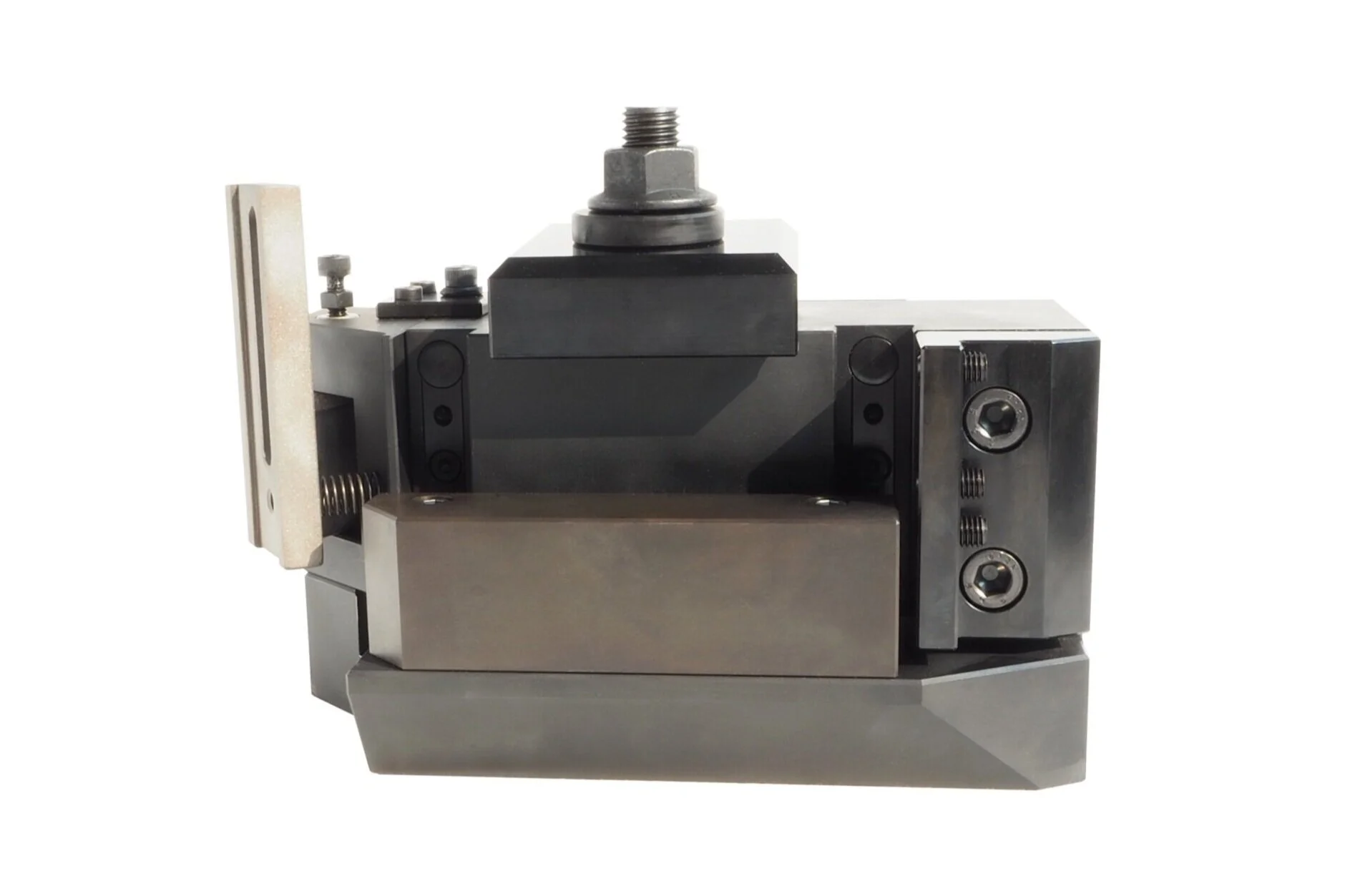

Stationary Die Block
Our Stationary Die Block is engineered to maximize the number of die adjustments while eliminating the need for shims.

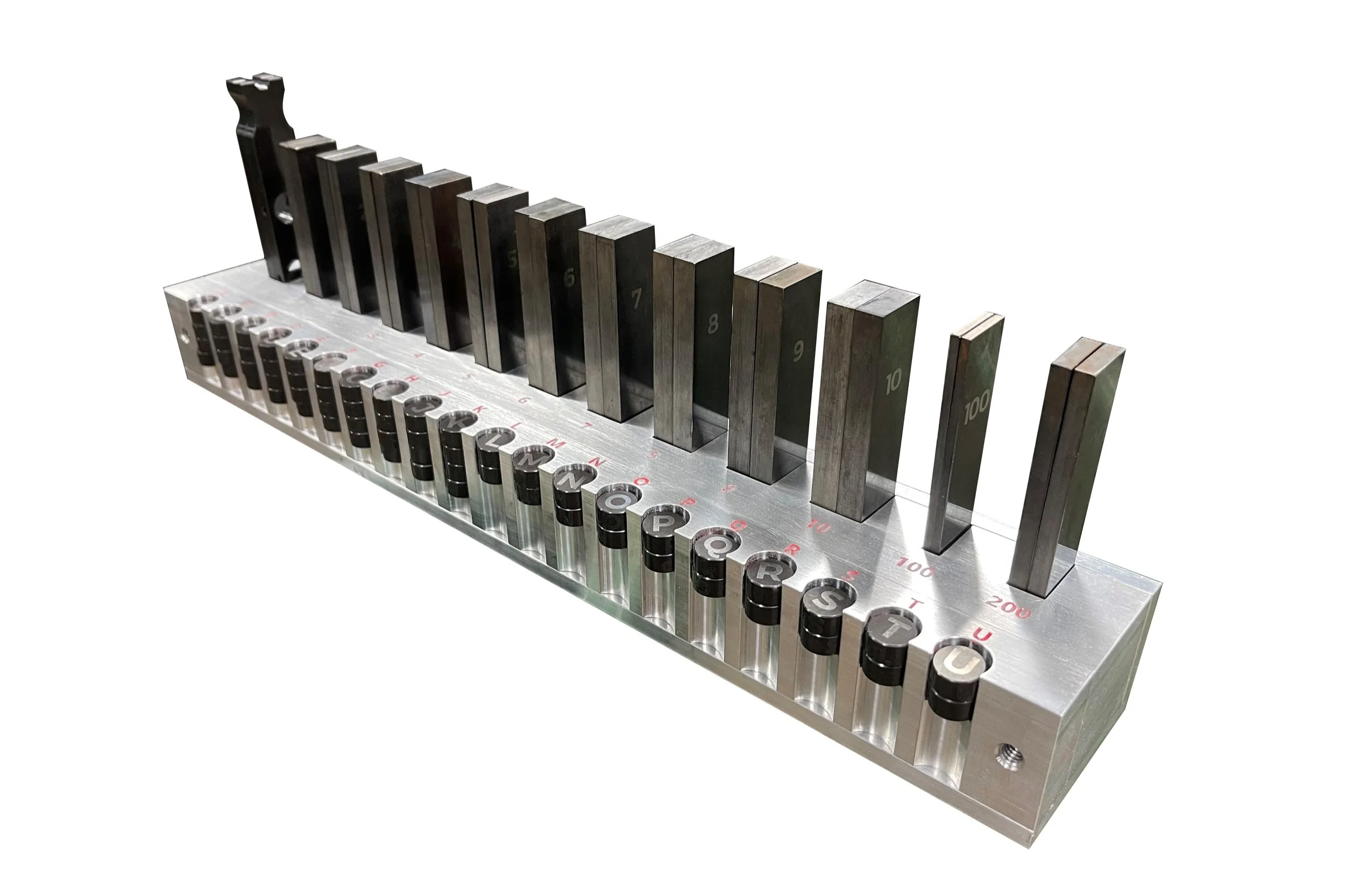

Mule Keys™
Keys give operators a simple process of adjusting, saving and repeating die setups. Keys are comprised of 12 unique pairs Bars for coarse adjustments and 10 unique sets of 4 Discs and 10 unique sets of 2 Discs for fine adjustments and tilting.

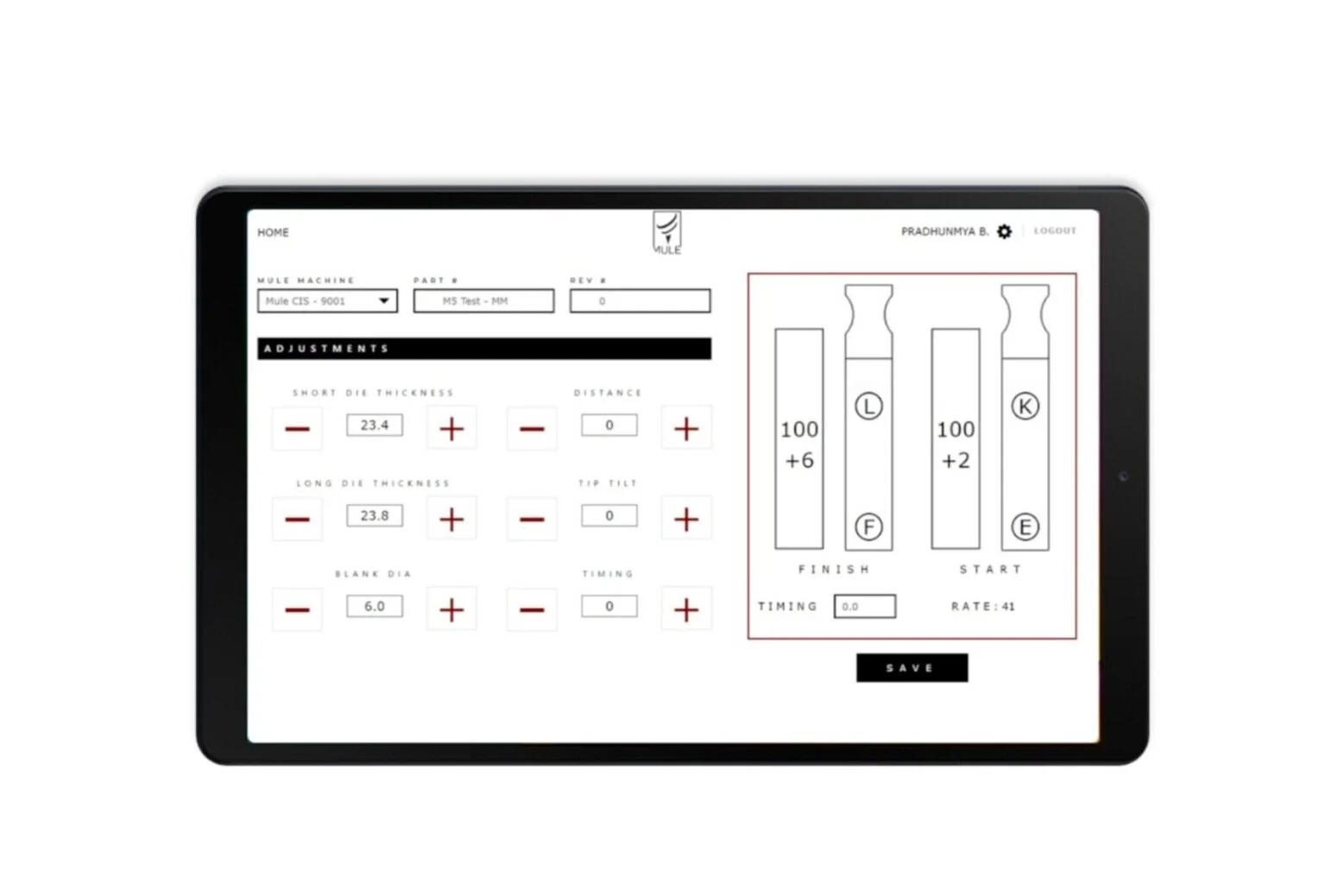

Mule Recipes™
Mule Recipes™ is a cloud-based application which assists operators, engineers and managers with creating and managing die setups.
Accessories
Live Adjust™
Our live die pressure adjustment system specifically designed for the Aerospace industry. Live Adjust™ allows operators to adjust the pressure from 0.001” to 0.0001” with the quick turn of an indicator knob.

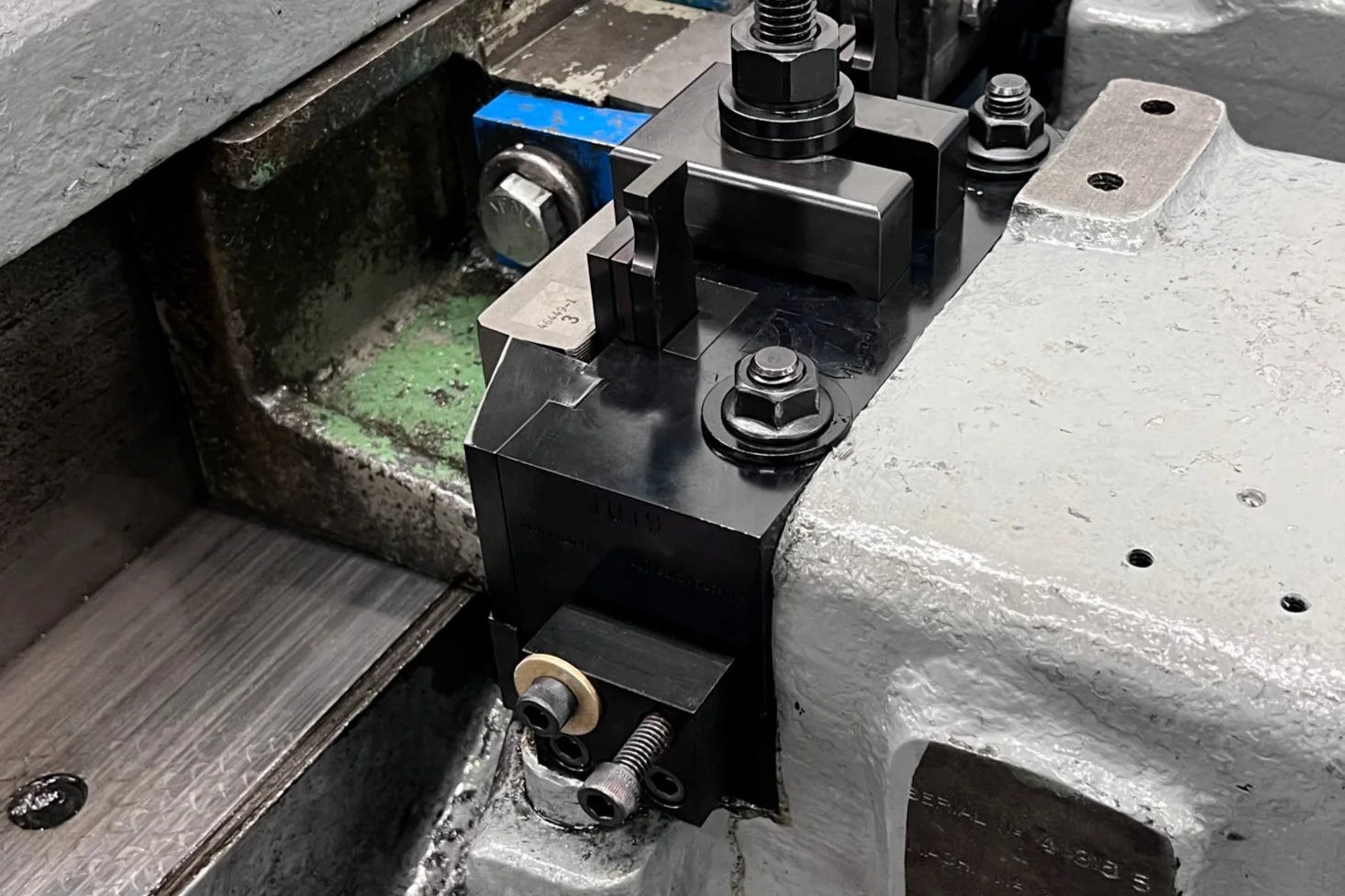

Lineup Adjustment
For machines without an adjustable pitman arm, we offer a die lineup adjustment system which moves the die block parallel to the slide.
Thread Roller Machine Sizes
Retrofits for #0 & #1015 Threaders
-
Mule #0 & #1015 Die Pockets can accommodate all standard #0 & #1015 die sizes (3/4”, 1-1/8”, 1-5/8”, 2-1/8”, etc.), respectively. Single face, duplex face, and Boltmaker-style dies can be used with Mule Die Pockets. If required, Mule can customize any Die Pocket for specific applications.
-
Mule Die Pocket & Key Retrofits have a 6 to 8 week lead time from the time of order.
-
Installation and calibration of a Mule Die Pocket & Key Kit takes 3 to 4 hours.
Retrofits for #10 Threaders
-
Mule #10 Die Pockets can accommodate all standard #10 die sizes (1-1/8”, 1-5/8”, 2-1/8”, etc.). Single face, duplex face, and Boltmaker-style dies can be used with Mule Die Pockets. If required, Mule can customize any Die Pocket for specific applications.
-
Mule Die Pocket & Key Retrofits have a 6 to 8 week lead time from the time of order.
-
Installation and calibration of a Mule Die Pocket & Key Kit takes 3 to 4 hours.
Retrofits for #20 Threaders
-
Mule #20 Die Pockets can accommodate all standard #20 die sizes (1-5/8”, 2-1/8”, 2-5/8”, 3-1/8”, etc.). Single face, duplex face, and Boltmaker-style dies can be used with Mule Die Pockets. If required, Mule can customize any Die Pocket for specific applications.
-
Mule Die Pocket & Key Retrofits have a 6 to 8 week lead time from the time of order.
-
Installation and calibration of a Mule Die Pocket & Key Kit takes 3 to 4 hours.
Retrofits for #30 Threaders
-
Mule #30 Die Pockets can accommodate all standard #30 die sizes (2-5/8”, 2-3/4”, 3-1/8”, 4-1/8”, etc.). Single face, duplex face, and Boltmaker-style dies can be used with Mule Die Pockets. If required, Mule can customize any Die Pocket for specific applications.
-
Mule Die Pocket & Key Retrofits have a 6 to 8 week lead time from the time of order.
-
Installation and calibration of a Mule Die Pocket & Key Kit takes 3 to 4 hours.
Retrofits for #40 Threaders
-
Mule #40 Die Pockets can accommodate all standard #40 die sizes (2-1/8”, 2-5/8”, 2-3/4”, 3-1/8”, 4-1/8”, etc.). Single face, duplex face, and Boltmaker-style dies can be used with Mule Die Pockets. If required, Mule can customize any Die Pocket for specific applications.
-
Mule Die Pocket & Key Retrofits have a 6 to 8 week lead time from the time of order.
-
Installation and calibration of a Mule Die Pocket & Key Kit takes 3 to 4 hours.
